This class is an interface for implementing a duplex FIFO stream. More...

#include <stream.h>

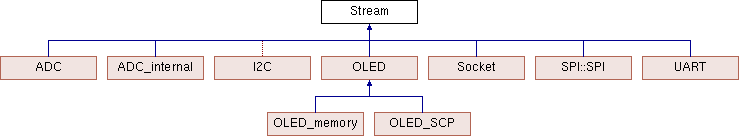

Inheritance diagram for Stream:

Public Member Functions
	Stream (uint16_t input_stream_size, uint16_t output_stream_size)

virtual void	Write (uint8_t *string, uint16_t size)

virtual uint16_t	Read (uint8_t *string, uint16_t size)

virtual bool	ReadByte (uint8_t &byte)

virtual void	WriteByte (uint8_t byte)

virtual uint8_t	GetAvailableWriteBytes ()

virtual uint8_t	GetAvailableReadBytes ()

virtual bool	CheckInputOverflowFlag ()

virtual bool	CheckOutputOverflowFlag ()

virtual uint16_t	GetInputBufferLength ()

virtual uint16_t	GetOutputBufferLength ()

virtual void	FlushInputBuffer ()

virtual void	FlushOutputBuffer ()

Protected Member Functions
virtual uint16_t	ReadFromBuffer (uint8_t buffer, uint16_t &start_index, uint16_t &stop_index, uint16_t &buffer_size, bool &empty, uint8_t string, uint16_t &string_size)

virtual void	WriteToBuffer (uint8_t buffer, uint16_t &start_index, uint16_t &stop_index, uint16_t &buffer_size, bool &empty, bool &overflow_flag, uint8_t string, uint16_t &string_size, void(cb)(Stream stream))

virtual bool	ReadByteFromBuffer (uint8_t &byte, uint8_t *buffer, uint16_t &start_index, uint16_t &stop_index, uint16_t &buffer_size, bool &empty)

virtual void	WriteByteToBuffer (uint8_t buffer, uint16_t &start_index, uint16_t &stop_index, uint16_t &buffer_size, bool &empty, bool &overflow_flag, uint8_t &byte, void(cb)(Stream *stream))

virtual void	WriteByteToInputStream (uint8_t &byte)

virtual bool	ReadByteFromOutputStream (uint8_t &byte)

virtual void	WriteToInputStream (uint8_t *string, uint16_t size)

virtual uint16_t	ReadFromOutputStream (uint8_t *string, uint16_t size)

virtual uint16_t	CalculateLength (uint16_t &start_index, uint16_t &stop_index, uint16_t &buffer_size, bool &empty)

virtual void	FlushStream (uint16_t &start_index, uint16_t &stop_index, uint16_t &buffer_size, bool &empty)

Protected Attributes
uint8_t *	input_buffer

uint8_t *	output_buffer

uint16_t	input_buffer_start_index = 0

uint16_t	output_buffer_start_index = 0

uint16_t	input_buffer_stop_index

uint16_t	output_buffer_stop_index

uint16_t	input_buffer_size

uint16_t	output_buffer_size

void(*	event_input_buffer_not_empty )(Stream *stream) = nullptr

void(*	event_output_buffer_not_empty )(Stream *stream) = nullptr

bool	input_buffer_empty = true

bool	output_buffer_empty = true

bool	input_buffer_overflowed = false

bool	output_buffer_overflowed = false

Detailed Description

This class is an interface for implementing a duplex FIFO stream.

This class implements a duplex FIFO stream using two circular buffers. For instance both an RS232 driver and a CAN driver would need to implement a stream. Inheriting from this interface makes the communication interface for RS232, CAN and other stream based classes/drivers the same, meaning the end user does not need to know whether the data being sent is being sent over a UART or a CAN bus.

As an example you can set up a CAN bus using a CAN driver inheriting from this interface. Then it can be passed to a function expecting to send data to an RS232 class also inheriting from this interface, and it will just work. This interface is in other words written to make it easier to write consistent and driver independent code.

Constructor & Destructor Documentation

§ Stream()

Stream::Stream	(	uint16_t	input_stream_size,
		uint16_t	output_stream_size
	)

Used to initialize the stream sizes and other data members.

Parameters

input_stream_size	The maximum size of the input stream.
output_stream_size	The maximum size of the output stream.

Member Function Documentation

§ CalculateLength()

uint16_t Stream::CalculateLength	(	uint16_t &	start_index,
		uint16_t &	stop_index,
		uint16_t &	buffer_size,
		bool &	empty
	)

protectedvirtual

Calculates the length of the valid part of the buffer.

Parameters

start_index	The start index of the buffer.
stop_index	The stop index of the buffer.

Returns: Length of valid data.

§ CheckInputOverflowFlag()

bool Stream::CheckInputOverflowFlag ( )

virtual

Checks whether or not the input overflow flag has been set. This also clears the flag.

Returns: Returns flag value.

§ CheckOutputOverflowFlag()

bool Stream::CheckOutputOverflowFlag ( )

virtual

Checks whether or not the output overflow flag has been set. This also clears the flag.

Returns: Returns flag value.

§ FlushInputBuffer()

void Stream::FlushInputBuffer ( )

virtual

Flushes the input buffer

§ FlushOutputBuffer()

void Stream::FlushOutputBuffer ( )

virtual

Flushes the output buffer

§ FlushStream()

void Stream::FlushStream	(	uint16_t &	start_index,
		uint16_t &	stop_index,
		uint16_t &	buffer_size,
		bool &	empty
	)

protectedvirtual

Flushes the given buffer

Parameters

buffer	Reference to the buffer which is to be flushed
start_index	Start index of the buffer which is to be flushed
stop_index	Stop index of the buffer which is to be flushed
buffer_size	The size of the given buffer
empty	Reference to the empty flag of the given buffer

§ GetAvailableReadBytes()

uint8_t Stream::GetAvailableReadBytes ( )

virtual

Returns the number of bytes available for reading.

Returns: Returns the length of valid data in the input stream.

§ GetAvailableWriteBytes()

uint8_t Stream::GetAvailableWriteBytes ( )

virtual

Returns number of bytes not being used in the output buffer (size - length)

Returns: Returns the length of the free space in the output stream.

§ GetInputBufferLength()

uint16_t Stream::GetInputBufferLength ( )

virtual

Calculates the length of the readable part of the buffer.

Returns: Length of valid data.

§ GetOutputBufferLength()

uint16_t Stream::GetOutputBufferLength ( )

virtual

Calculates the length of the readable part of the buffer.

Returns: Length of valid data

§ Read()

uint16_t Stream::Read	(	uint8_t *	string,
		uint16_t	size
	)

virtual

Reads data from the input stream into the specified string.

Parameters

string	String to store read data in.
size	Size of the string.

§ ReadByte()

bool Stream::ReadByte ( uint8_t & byte )

virtual

Reads one byte from the input stream.

Returns: Returns the read byte.

§ ReadByteFromBuffer()

bool Stream::ReadByteFromBuffer	(	uint8_t &	byte,
		uint8_t *	buffer,
		uint16_t &	start_index,
		uint16_t &	stop_index,
		uint16_t &	buffer_size,
		bool &	empty
	)

protectedvirtual

Reads a byte from the given buffer.

Parameters

buffer	The buffer to read from.
start_index	The first valid bit of the buffer.
stop_index	The last valid bit of the buffer.
buffer_size	The size of the buffer.
empty	Flag indicating whether the buffer is empty or completely full.

Returns: The byte that was read.

§ ReadByteFromOutputStream()

bool Stream::ReadByteFromOutputStream ( uint8_t & byte )

protectedvirtual

Reads a byte from the output stream.

Returns: Returns true if there are more bytes

§ ReadFromBuffer()

uint16_t Stream::ReadFromBuffer	(	uint8_t *	buffer,
		uint16_t &	start_index,
		uint16_t &	stop_index,
		uint16_t &	buffer_size,
		bool &	empty,
		uint8_t *	string,
		uint16_t &	string_size
	)

protectedvirtual

Reads a string from the given buffer.

Parameters

buffer	Buffer to read from.
start_index	The first valid byte of the buffer.
stop_index	The last valid byte of the buffer.
buffer_size	The size of the buffer.
empty	Flag indicating whether the buffer is empty or completely full.
string	The string to read into.
string_size	The size of the string.

§ ReadFromOutputStream()

uint16_t Stream::ReadFromOutputStream	(	uint8_t *	string,
		uint16_t	size
	)

protectedvirtual

Reads data from the input stream into the specified string.

Parameters

string	String to store the read data in.
size	Size of the string.

§ Write()

void Stream::Write	(	uint8_t *	string,
		uint16_t	size
	)

virtual

Writes the specified data to the output stream.

Parameters

string	Input data.
size	Size of the input data string.

Reimplemented in Socket, and UART.

§ WriteByte()

void Stream::WriteByte ( uint8_t byte )

virtual

Writes one byte to the output stream.

Parameters

byte	The byte to be written.

Reimplemented in Socket.

§ WriteByteToBuffer()

void Stream::WriteByteToBuffer	(	uint8_t *	buffer,
		uint16_t &	start_index,
		uint16_t &	stop_index,
		uint16_t &	buffer_size,
		bool &	empty,
		bool &	overflow_flag,
		uint8_t &	byte,
		void()(Stream stream)	cb
	)

protectedvirtual

Writes a byte to the buffer.

Parameters

buffer	The buffer to write to.
start_index	The first valid bit of the buffer.
stop_index	The last valid bit of the buffer.
buffer_size	The size of the buffer.
empty	Flag indicating whether the buffer is empty or completely full.
overflow_flag	A flag indicating whether or not the buffer has overflowed.
byte	The byte to be written.
cb_flag	A flag indicating wether or not the cb function should be called
cb	Callback function to be called if cb_flag is true

§ WriteByteToInputStream()

void Stream::WriteByteToInputStream ( uint8_t & byte )

protectedvirtual

Writes a byte to the input stream.

Parameters

byte	The byte to be written.

§ WriteToBuffer()

void Stream::WriteToBuffer	(	uint8_t *	buffer,
		uint16_t &	start_index,
		uint16_t &	stop_index,
		uint16_t &	buffer_size,
		bool &	empty,
		bool &	overflow_flag,
		uint8_t *	string,
		uint16_t &	string_size,
		void()(Stream stream)	cb
	)

protectedvirtual

Writes a string to the given buffer.

Parameters

buffer	Buffer to write to.
start_index	The first valid byte of the buffer.
stop_index	The last valid byte of the buffer.
buffer_size	The size of the buffer.
empty	Flag indicating whether the buffer is empty or completely full.
overflow_flag	A flag indicating whether or not the buffer has overflowed.
string	The string to read from.
string_size	The size of the string.
cb_flag	A flag indicating wether or not the cb function should be called
cb	Callback function to be called if cb_flag is true

§ WriteToInputStream()

void Stream::WriteToInputStream	(	uint8_t *	string,
		uint16_t	size
	)

protectedvirtual

Writes the specified data to the output stream.

Parameters

string	Input data.
size	Size of the input data.

Member Data Documentation

§ input_buffer

uint8_t* Stream::input_buffer

protected

Buffer that stores the input stream data.

§ input_buffer_empty

bool Stream::input_buffer_empty = true

protected

Flag indicating whether the buffer is empty or full.

§ input_buffer_overflowed

bool Stream::input_buffer_overflowed = false

protected

Flag indicating whether the input buffer has overflowed or not. This is reset when read by CheckInputOverflowFlag().

§ input_buffer_size

uint16_t Stream::input_buffer_size

protected

The size of the input buffer.

§ input_buffer_start_index

uint16_t Stream::input_buffer_start_index = 0

protected

Indicates the first valid data byte in the buffer.

§ input_buffer_stop_index

uint16_t Stream::input_buffer_stop_index

protected

Indicates the last valid data byte in the buffer.

§ output_buffer

uint8_t* Stream::output_buffer

protected

Buffer that stores the output stream data.

§ output_buffer_empty

bool Stream::output_buffer_empty = true

protected

Flag indicating whether the buffer is empty or full.

§ output_buffer_overflowed

bool Stream::output_buffer_overflowed = false

protected

Flag indicating whether the output buffer has overflowed or not. This is reset when read by CheckOutputOverflowFlag().

§ output_buffer_size

uint16_t Stream::output_buffer_size

protected

The size of the output buffer.

§ output_buffer_start_index

uint16_t Stream::output_buffer_start_index = 0

protected

Indicates the first valid data byte in the buffer.

§ output_buffer_stop_index

uint16_t Stream::output_buffer_stop_index

protected

Indicates the last valid data byte in the buffer.

The documentation for this class was generated from the following files:

lib/stream/stream.h
lib/stream/stream.cpp

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

§ Stream()

Member Function Documentation

§ CalculateLength()

§ CheckInputOverflowFlag()

§ CheckOutputOverflowFlag()

§ FlushInputBuffer()

§ FlushOutputBuffer()

§ FlushStream()

§ GetAvailableReadBytes()

§ GetAvailableWriteBytes()

§ GetInputBufferLength()

§ GetOutputBufferLength()

§ Read()

§ ReadByte()

§ ReadByteFromBuffer()

§ ReadByteFromOutputStream()

§ ReadFromBuffer()

§ ReadFromOutputStream()

§ Write()

§ WriteByte()

§ WriteByteToBuffer()

§ WriteByteToInputStream()

§ WriteToBuffer()

§ WriteToInputStream()

Member Data Documentation

§ input_buffer

§ input_buffer_empty

§ input_buffer_overflowed

§ input_buffer_size

§ input_buffer_start_index

§ input_buffer_stop_index

§ output_buffer

§ output_buffer_empty

§ output_buffer_overflowed

§ output_buffer_size

§ output_buffer_start_index

§ output_buffer_stop_index
